This tutorial is based on SAML SSO with Auth0 as Service Provider and as an Identity Provider, but the steps that are relevant to configuring an Auth0 tenant as the Service Provider (SP) are replaced with Splunk Configuration.

In this section you will configure one Auth0 tenant (tenant 2) to serve as an Identity Provider. You will do this by registering an application, but in this case, the ‘application’ you register is really a representation of tenant 1, the SAML Service Provider.

In the Auth0 dashboard:

1. Click on “Applications” link at left.
2. Click on the red “+ CREATE APPLICATION” button on the right.

3. In the Name field, enter a name (I’ve had mine as “Splunk 7.0.3 Container”).
4. Press the blue “SAVE” button.
5. Click on the “Settings” tab.
6. Scroll down and click on the “Show Advanced Settings” link.
7. In the expanded window, scroll down to the “Certificates” section and click on the “DOWNLOAD CERTIFICATE” link and select PEM from the dropdown, to download a PEM-formatted certificate. The certificate will be downloaded to a file called “YOUR_TENANT.pem”. Save this file as you will need to upload this file when configuring the other Auth0 tenant, tenant 1.

8. Click on the “Endpoints” tab and go to the “SAML” section.. Follow the “SAML Metadata URL” to download the IdP metadata file which we will need later in Splunk SAML configuration.
9. Click on the “Endpoints” tab and go to the “SAML” section. Copy the entire contents of the “SAML Protocol URL” field and save it as in the next step you will need to paste it into Splunk SSO configuration .

Creating User(s) in Auth0

Next, create a user to use in testing the SAML SSO sequence. In the Auth0 dashboard:

1. On the lefthand side, navigate to Users and Roles > Users
2. Click on the “+ CREATE YOUR FIRST USER” button.

3. In the Email field, enter an email for your test user. The domain name for the email should match what you enter in section 3 below. For example, if your user is john.doe@abc-example.com, you would enter that here, and then enter “abc-example.com” in step 3 below for the Email domain.
4. Enter a password for the user
5. For the Connection, leave it at the default value. (Username-Password-Authentication)
6. Press the blue “SAVE” button.

Creating Roles and assigning user(s) in Auth0

Since Splunk relies on the IdP to return the user roles you will need to create at least one  new Role and assign a user to it.

1. On the lefthand side, navigate to Users and Roles > Roles
2. Click on the “+ CREATE ROLE” button.

3. Once the Role is created click on “ADD USERS” button

4. From the dropdown list select the user and click “ASSIGN“

NOTE: for Auth0 to return the groups information in SAML you will need to follow the steps in Return User Roles in Auth0.

Configure Splunk

1. Login to Splunk
2. Navigate to “Settings” > “Access Controls” > “Authentication Method”
3. Under External authentication methods, select “SAML” and click the “SAML Settings” link

4. Create the required SAML groups (and assign roles to them), so that these group names will be matched with the Auth0 role names

5. On top right corner click the “SAML Configuration” button
6. On the right of the “Metadata XML File” click “Select File” and upload the IdP metadata file that you’ve downloaded from Auth, it will be called something like dev-1a2b3c4d-idp_au_auth0_com-metadata.xml (the first part will depend on your Auth0 tenant name).

7. This will populate most the required fields in the SAML settings.

8. Now fill in “Entity ID”, must be unique for your IdP (I used “Splunk703”)
9. I have also used “Aliases” to get the Roles information from Auth0

10. 10. At the top of this SAML Configuration page click the “Download” button to get Splunk’s SP Metadata File



    Add your Service Provider (Splunk) metadata to the Identity Provider (Auth0)

    In this section you will go back and add some information about the Service Provider (Splunk) to the Identity Provider (Auth0) so the Identity Provider Auth0 tenant knows how to receive and respond to SAML-based authentication requests from the Splunk.
    In the Auth0 dashboard:

    1. Click on “Applications” link at left.
    2. Find the row for the application you created earlier, and click on the “Add Ons” icon to the right of the application name. (the angle bracket and slash icon)
    3. Locate the box with the “SAML2 WEB APP” label and click on the circle toggle to turn it green.



    4. Next, a configuration window will pop up for the “Addon: SAML2 Web App”. Make sure you are in the Settings” tab.



    5. In the “Application Callback URL” field, paste in the Assertion Consumer Service URL that can be found in the Splunk SP Metadata XML file that you’ve downloaded from Splunk UI in the previous section. It will be the value of
       SPSSODescriptor > AssertionConsumerService > Location (http://splunk703_01:8000/saml/acs in my case)
    6.



    6. In the Settings field below, go to line 2 that has the “audience” attribute.

    First remove the “//” at the beginning of the line to uncomment it, and remove the comma (‘,’) from the end of the line.
    Next, replace the original value (urn:foo) with the Entity ID value you used in Splunk. The new line 2 should look something like:





    7. Click on the blue “SAVE” button at the bottom of the screen



    Test Identity Provider

    In the same screen, click on the red “DEBUG” button.
    That will trigger a login screen from tenant 2, the Identity Provider.
    Log in with the credentials for the user you created above.

    If your configuration is correct, you will see a screen titled “It works!”
    This screen will show you the encoded and decoded SAML response that would be sent by the Identity Provider.
    Check the decoded SAML response and locate (about half-way down) the "<saml:Audience>" tag and make sure it matches the Entity ID you entered in the previous screen (obtained during step 3).
    Click on “Close this window” at the bottom of the screen.

    Logging In

    Browse to you Splunk URL (http://splunk703_01:8000/en-US/) in my case.
    You will be redirected to the Auth) Authentication screen

    After you provide your credentials your browser will redirect back into Splunk
    You can verify that the user has received the expected roles by logging in as Admin and going to Settings > Access Controls > Users

    By the way,, if you want to bypass SAML and login using Splunk local user browse to<SPLUNK_URL>/account/login?loginType=Splunk (which is http://splunk703_01:8000/en-US/account/login?loginType=Splunk in my case)

Related posts about Splunk

The post Configure Splunk SSO with Auth0 as your identity provider appeared first on ISbyR.

This tutorial is based on SAML SSO with Auth0 as Service Provider and as an Identity Provider, but the steps that are relevant to configuring an Auth0 tenant as the Service Provider (SP) are replaced with Splunk Configuration.

In this section you will configure one Auth0 tenant (tenant 2) to serve as an Identity Provider. You will do this by registering an application, but in this case, the ‘application’ you register is really a representation of tenant 1, the SAML Service Provider.

In the Auth0 dashboard:

1. Click on “Applications” link at left.
2. Click on the red “+ CREATE APPLICATION” button on the right.

3. In the Name field, enter a name (I’ve had mine as “Splunk 7.0.3 Container”).
4. Press the blue “SAVE” button.
5. Click on the “Settings” tab.
6. Scroll down and click on the “Show Advanced Settings” link.
7. In the expanded window, scroll down to the “Certificates” section and click on the “DOWNLOAD CERTIFICATE” link and select PEM from the dropdown, to download a PEM-formatted certificate. The certificate will be downloaded to a file called “YOUR_TENANT.pem”. Save this file as you will need to upload this file when configuring the other Auth0 tenant, tenant 1.

8. Click on the “Endpoints” tab and go to the “SAML” section.. Follow the “SAML Metadata URL” to download the IdP metadata file which we will need later in Splunk SAML configuration.
9. Click on the “Endpoints” tab and go to the “SAML” section. Copy the entire contents of the “SAML Protocol URL” field and save it as in the next step you will need to paste it into Splunk SSO configuration .

Creating User(s) in Auth0

Next, create a user to use in testing the SAML SSO sequence. In the Auth0 dashboard:

1. On the lefthand side, navigate to Users and Roles > Users
2. Click on the “+ CREATE YOUR FIRST USER” button.

3. In the Email field, enter an email for your test user. The domain name for the email should match what you enter in section 3 below. For example, if your user is john.doe@abc-example.com, you would enter that here, and then enter “abc-example.com” in step 3 below for the Email domain.
4. Enter a password for the user
5. For the Connection, leave it at the default value. (Username-Password-Authentication)
6. Press the blue “SAVE” button.

Creating Roles and assigning user(s) in Auth0

Since Splunk relies on the IdP to return the user roles you will need to create at least one  new Role and assign a user to it.

1. On the lefthand side, navigate to Users and Roles > Roles
2. Click on the “+ CREATE ROLE” button.

3. Once the Role is created click on “ADD USERS” button

4. From the dropdown list select the user and click “ASSIGN“

NOTE: for Auth0 to return the groups information in SAML you will need to follow the steps in Return User Roles in Auth0.

Configure Splunk

1. Login to Splunk
2. Navigate to “Settings” > “Access Controls” > “Authentication Method”
3. Under External authentication methods, select “SAML” and click the “SAML Settings” link

4. Create the required SAML groups (and assign roles to them), so that these group names will be matched with the Auth0 role names

5. On top right corner click the “SAML Configuration” button
6. On the right of the “Metadata XML File” click “Select File” and upload the IdP metadata file that you’ve downloaded from Auth, it will be called something like dev-1a2b3c4d-idp_au_auth0_com-metadata.xml (the first part will depend on your Auth0 tenant name).

7. This will populate most the required fields in the SAML settings.

8. Now fill in “Entity ID”, must be unique for your IdP (I used “Splunk703”)
9. I have also used “Aliases” to get the Roles information from Auth0

10. 10. At the top of this SAML Configuration page click the “Download” button to get Splunk’s SP Metadata File



    Add your Service Provider (Splunk) metadata to the Identity Provider (Auth0)

    In this section you will go back and add some information about the Service Provider (Splunk) to the Identity Provider (Auth0) so the Identity Provider Auth0 tenant knows how to receive and respond to SAML-based authentication requests from the Splunk.
    In the Auth0 dashboard:

    1. Click on “Applications” link at left.
    2. Find the row for the application you created earlier, and click on the “Add Ons” icon to the right of the application name. (the angle bracket and slash icon)
    3. Locate the box with the “SAML2 WEB APP” label and click on the circle toggle to turn it green.



    4. Next, a configuration window will pop up for the “Addon: SAML2 Web App”. Make sure you are in the Settings” tab.



    5. In the “Application Callback URL” field, paste in the Assertion Consumer Service URL that can be found in the Splunk SP Metadata XML file that you’ve downloaded from Splunk UI in the previous section. It will be the value of
       SPSSODescriptor > AssertionConsumerService > Location (http://splunk703_01:8000/saml/acs in my case)
    6.



    6. In the Settings field below, go to line 2 that has the “audience” attribute.

    First remove the “//” at the beginning of the line to uncomment it, and remove the comma (‘,’) from the end of the line.
    Next, replace the original value (urn:foo) with the Entity ID value you used in Splunk. The new line 2 should look something like:





    7. Click on the blue “SAVE” button at the bottom of the screen



    Test Identity Provider

    In the same screen, click on the red “DEBUG” button.
    That will trigger a login screen from tenant 2, the Identity Provider.
    Log in with the credentials for the user you created above.

    If your configuration is correct, you will see a screen titled “It works!”
    This screen will show you the encoded and decoded SAML response that would be sent by the Identity Provider.
    Check the decoded SAML response and locate (about half-way down) the "<saml:Audience>" tag and make sure it matches the Entity ID you entered in the previous screen (obtained during step 3).
    Click on “Close this window” at the bottom of the screen.

    Logging In

    Browse to you Splunk URL (http://splunk703_01:8000/en-US/) in my case.
    You will be redirected to the Auth) Authentication screen

    After you provide your credentials your browser will redirect back into Splunk
    You can verify that the user has received the expected roles by logging in as Admin and going to Settings > Access Controls > Users

    By the way,, if you want to bypass SAML and login using Splunk local user browse to<SPLUNK_URL>/account/login?loginType=Splunk (which is http://splunk703_01:8000/en-US/account/login?loginType=Splunk in my case)

Related posts about Splunk

The post Configure Splunk SSO with Auth0 as your identity provider appeared first on ISbyR.

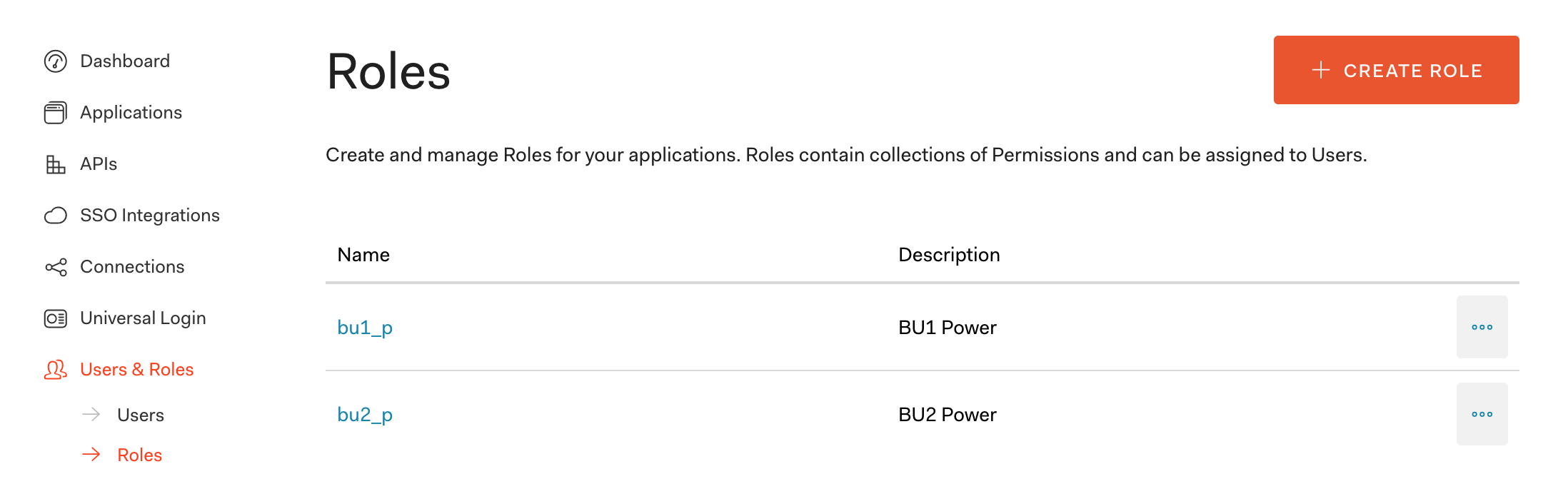

Of course the  prerequisite of returning roles assigned to the user is to have them defined, so configure a few Roles under the User & Roles section on the left and assign 1 or more rule to a user.

I’ve created bu1_p and bu2_p (as for Business Unit 1/2 – Power User).

Next you will need to configure a Rule.

“Rules are JavaScript functions that execute when a user authenticates to your application. They run once the authentication process is complete, and you can use them to customize and extend Auth0’s capabilities.”

So from different sources I’ve stitched up a simple rule that adds roles assigned to a user and adds them to the user context.

Go to Rules and create a new Rule using empty rule template

Update the function to look like this:

function (user, context, callback) {
  // Get the user roles from the Authorization context
  const assignedRoles = (context.authorization || {}).roles;
  // Update the user object.
  user.rolez = assignedRoles;
  callback(null, user, context);
}

Save it.

If you want to test it by clicking “TRY THIS RULE” button, but don”t forget to update the context to include the  authorization with the roles (last couple of lines in the snippet below)

{
  "clientID":            "123456789",
  "clientName":          "MyWebApp",
  "connection":          "MyDbConn",
  "connectionStrategy":  "auth0",
  "protocol":            "oidc-basic-profile",
  "request": {
    "query":             { "scope": "openid" },
    "body":              {},
    "userAgent":         "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_9_1) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/32.0.1700.107 Safari/537.36",
    "ip":                "X.X.X.X",
    "geoip":             { "country_code":"AR", "country_code3":"ARG", "country_name":"Argentina", "region":"08", "city":"Federal", "postal_code":"3180", "latitude":-30.954599380493164, "longitude":-58.78329849243164, "continent_code":"SA", "time_zone":"America/Argentina/Buenos_Aires" }  },
  "samlConfiguration":   {},
  "stats":               { "loginsCount": 5 },
  "accessToken":         {},
  "idToken":             {},
  "authorization": {
    "roles" : "role1, role2"
  }
}

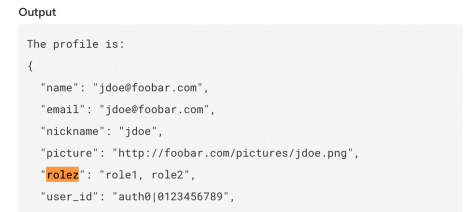

That’s it, now the authorization will return user roles in Auth0 as “rolez” attribute

The post Return user roles in Auth0 appeared first on ISbyR.
